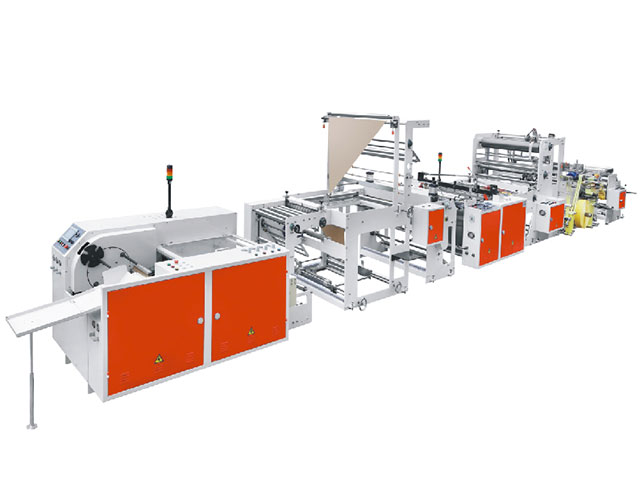

fully automatic draw tape farbag making machine for overlap & perforation bag-on-roll without core

Model

ZQ-1000RG+OR

ZQ-1000PG

Unwinder width

1000mm

1000mm

Unwinder diameter

￠900mm(max)

￠900mm(max)

Length of bag making

500-1100mm

500-1100mm

Bag making speed

100pcs/min

100pcs/min

Line speed

60m/min

60m/min

Rewinding width

300mm

300mm

Max diameter of rewinding

￠130mm

￠160mm

Finished roll exchange times

7rolls/min (max)

8rolls/min (max)

Film thickness

0.025-0.06mm

0.025-0.06mm

Total power

About 21kw

About 9kw

Machine dimension (L*W*H)

125000*2800*3000mm

125000*2800*3000mm

Machine weight

4500kg

4100kg

Air compressor

7.5hp(not included)
